MX-Input-Box
Weatherproof connection of external sensors. Connection to camera using MxBus. 6 self-powered inputs for connectiong up to 6 external sensors. Protection class IP66/IK08, -30 to 60°C / -22 to 140°F. Box can be mounted safely out of reach in the wall mounts of M1x, M2x, D1x, D2x
MX-Output-Box
Weatherproof connection of external devices and power relays. Connection to the camera via MxBus. Six self-powered outputs. Two isolated outputs. Protection class IP66/IK07, -30 to 60 °C / -22 to 140°F. Box can be mounted safely out of reach in the wall mounts of M1x, M2x, D1x, D2x

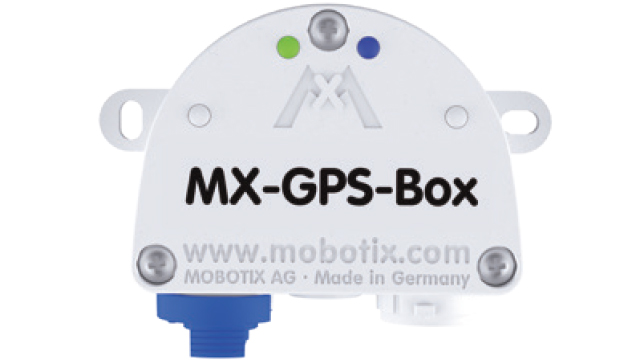

MX-GPS-Box
Weatherproof GPS time base for MOBOTIX systems. Includes outdoor temperature and illumination sensors. Connects via MxBus 2-wire cable. Protection class IP66/IK08, -30 to 60°C / -22 to +140°F. Box can be mounted safely out of reach in the wall mounts of M1x, M2x, D1x and D2x

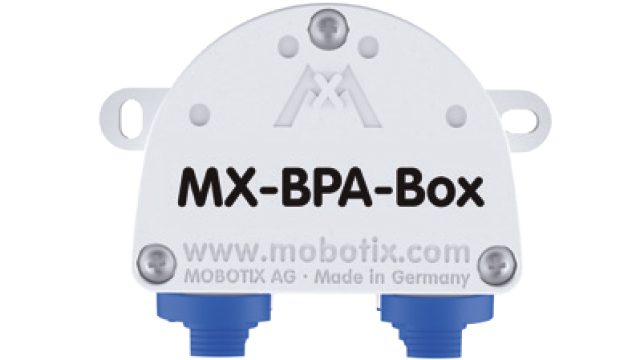

MX-BPA-Box
Power supply for several MxBus modules of one MxBus line. 2x2 connection terminals for MxBus. 2 connection terminals for external power supply from 12 to 48 V DC (2 terminals). Max. output rating: 9 W. IP66/IK08, -30 bis 60 °C / -22 to 140 °F. Box can be mounted safely out of reach in the wall mounts of M1x, M2x, D1x, D2x

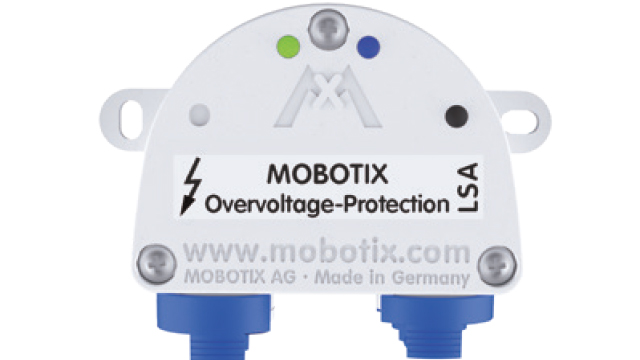

Overvoltage-Protection-Box
Weatherproof connection of one MOBOTIX patch cable and the network installation cable. Protects one MOBOTIX camera against surges of up to 4 kV on the PoE network cabling. Complete set including mounting supplies. Protection class IP66/IK08, -30 to 60°C / -22 to 140°F. Box can be mounted safely out of reach in the wall mounts of M1x, M2x, D1x, D2x

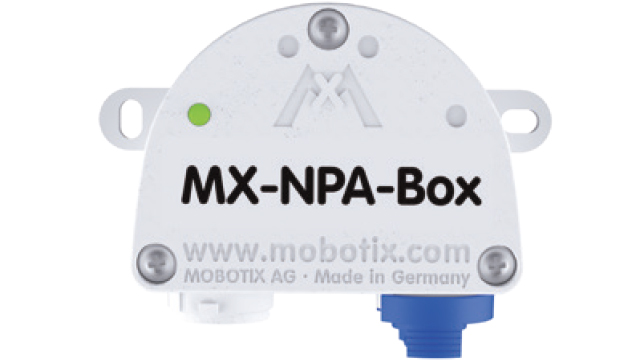

MX-NPA-Box
Weatherproof PoE Injector (IEEE 802.3af) and network connector. Needs external power supply units and batteries from 12 to 57 V DC. Protection class IP66/IK08, -30 to 60°C / -22 to 140°F. Important: only use with original MOBOTIX patch cables. Box can be mounted safely out of reach in the wall mounts of M1x, M2x, D1x and D2x

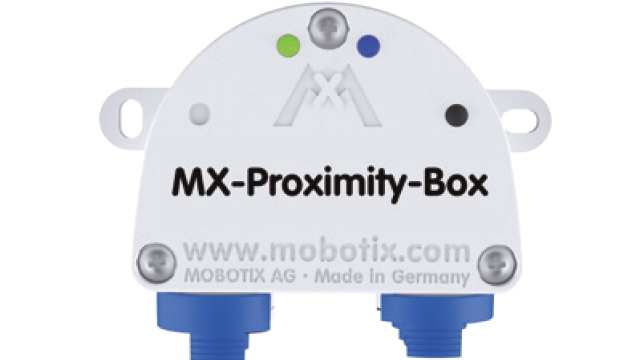

MX-Proximity-Box
Weatherproof proximity sensor for MOBOTIX systems. Accurate detection of approaching objects based on radar microwave technology. Covered area (horizontal x vertical): 80° x 34°. Detection range: upt to 8m/26 ft. (person), up to 20m/66 ft. (vehicle). Camera connection and supply via MxBus. Protection class IP66/IK07, -20 to 60°C / -4 to 140°F

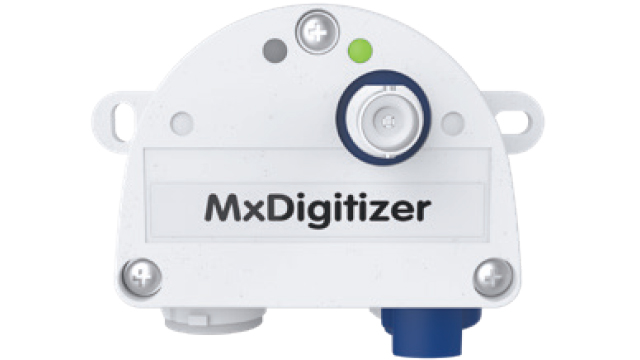

MxDigitizer
Interface box to connect one analog camera directly to a S1x Body as alternative image source. Up to two MxDigitizer boxes or two analog cameras can be connected to one S1x Body. Easy integration of analog cameras into the MOBOTIX IP video system incl. the support of MOBOTIX integrated image analysis tools.

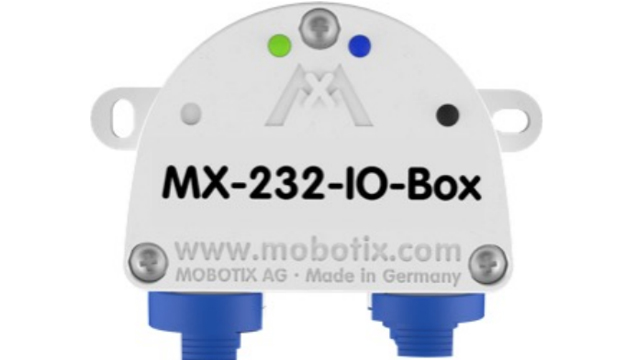

MX-232-IO-Box
Weatherproof connection of external sensors and switching of external devices via MOBOTIX cameras. Connection to camera using USB or MxBus. 2 self-powered inputs for connecting sensors. 2 outputs: 1 powered output, 1 isolated relay output. RS232 interface when using MOBOTIX USB cable to connect to camera. Protection class IP66/IK08, -30 to 60°C / -22 to 140°F.
